Trimble TDL450B UHF Radio

The Trimble TDL450B transmits real-time correction data for GNSS receivers with broadcast, repeat and receive functions. This UHF radio transmits at configurable power levels up to 35 watts, delivering RTK corrections across surveying and construction sites. The TDL450B radio operates within the 403-473 MHz frequency range (region-dependent) with field-selectable output power to match site conditions.

Wireless Communication and Field Integration

The Trimble TDL450B base radio provides integrated features that streamline field operations:

  • Bluetooth connectivity: Bluetooth server and client mode support provides wireless connectivity for field configuration and operation.

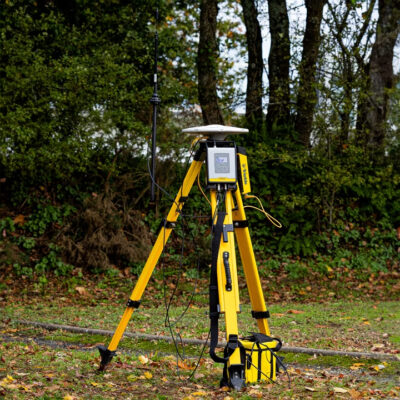

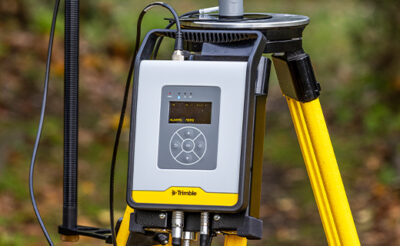

  • Flexible mounting options: The radio mounts alongside base station receivers on shared tripods for flexible signal placement.

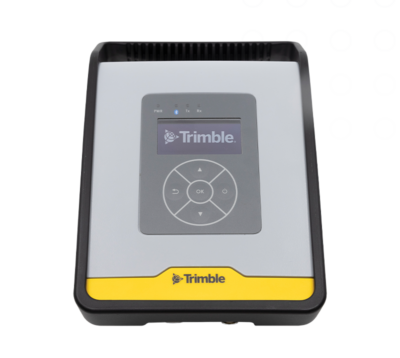

  • Integrated diagnostic display: Field crews access diagnostic data through the graphical OLED display and status LED indicators.
  • User-friendly interface: The five-button navigation interface provides access to radio configuration and settings.

Power Configuration and Battery Options

The TDL450B UHF radio accepts external power from nine to 30 volts DC. Power inputs from 11 to 30 volts DC support full functionality with user-selectable RF output power from 1 watt to 35 watts, where permitted. Power inputs from 9 to 11 volts DC limit the maximum output to 5 watts. Adaptable power solutions allow field crews to scale power capacity based on daily runtime requirements and site size.

Rugged Construction for Field Environments

The radio features a durable metal housing and an IP67 environmental rating, protecting internal components from dust ingress and water immersion to a depth of 1 meter. The housing resists environmental exposure in harsh field conditions. The radio operates over an extended temperature range of -30°C to +65°C and meets MIL-STD-810H Method 509.7 for corrosion resistance.

Download the TDL450B datasheet for complete technical specifications.

Key specifications

The TDL450B features Trimble’s latest radio technology, delivering strong performance out in the field.

  • Frequency range – 403-473 MHz

  • Configurable output power – Up to 35 W

  • Corrections for GNSS receivers – 1 Hz RTK
