Trimble Robotic Total Stations
Monsen Engineering offers a comprehensive selection of the surveying equipment you need for land surveying, construction and other tasks. The solutions we offer include the latest models of products from the Trimble brand, giving you an excellent choice that suits your operation.

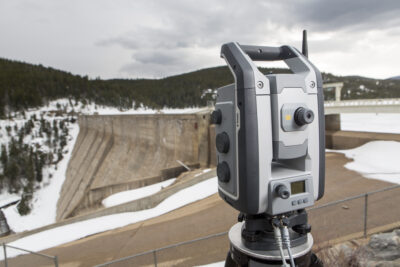

Trimble S9
The Trimble S9 combines all the top technologies developed for monitoring, tunneling and other highly demanding jobs. It is the industry’s leading robotic total station offering optimal speed, accuracy and reliability. With its custom configurations, it really will meet all your project’s demands.
- Advanced and accurate DR HP electronic distance measurement (EDM) technology
- Extremely precise 0.8 mm + 1 ppm prism /3.0 mm + 2 ppm (DR) EDM accuracy
- 0.5″ or 1″ angular accuracy for utmost precision in angle measurement

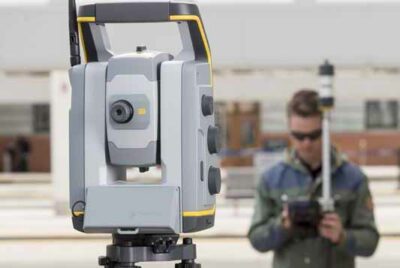

Trimble S7
Do you survey, perform 3D scans or have imaging needs? If so, the Trimble S7 robotic total station is for you. It can create detailed 3D models, visual site documentation, as well as point clouds, all in one instrument! With various handheld controllers and Trimble Access software, you can streamline your workflows and get your job done faster and with fewer interruptions.
The Trimble S7, in the field, combined with Trimble Business Center software, back in the office, is your complete field-to-finish solution for quick data capture and processing.
- 1″, 2″, 3″, or 5″ angular accuracy, offering flexibility from precise to less demanding tasks
- Enhanced DR PLUS EDM technology
- 1.0 mm + 2 ppm prism / 2.0 mm + 2 ppm DR EDM accuracy, delivering strong field work performance

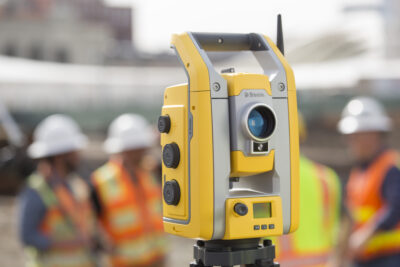

Trimble S5
Looking for a reliable total station that will perform project after project? The Trimble S5 is the workhorse total station you are looking for! This conventional total station works efficiently and dependably while maintaining the highest possible accuracy. Operating with proven Trimble technologies, the Trimble S5 will not disappoint.
- 1″, 2″, 3″, or 5″ angular accuracy, creating a reliable solution for various surveying tasks
- DR PLUS EDM technology for reflectorless measurement
- 1.0 mm + 2 ppm prism / 2.0 mm + 2 ppm DR EDM accuracy, delivering the same performance as the S7
| Angular Accuracy | EDM Technology | EDM Accuracy | Maximum Range | Technology Standard on All Models | Model-dependent features | |
|---|---|---|---|---|---|---|
| Trimble S9 HP Autolock® | 0.5″ or 1″ | DR HP | 0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR) | 7,000 m | Autolock, Magdrive, SurePoint, Active Tracking | FineLock, Long Range FineLock, Tracklight, VISION |
| Trimble S9 Autolock® | 1″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, FineLock, Long Range FineLock, Active Tracking | — |
| Trimble S7 Autolock® | 1″, 2″, 3″, or 5″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, Active Tracking | FineLock, SureScan, VISION |
| Trimble S5 Autolock® | 1″, 2″, 3″, or 5″ | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
Complementary Solutions
We can help you create a complete surveying setup. These Trimble robotic stations work with the following technology solutions.

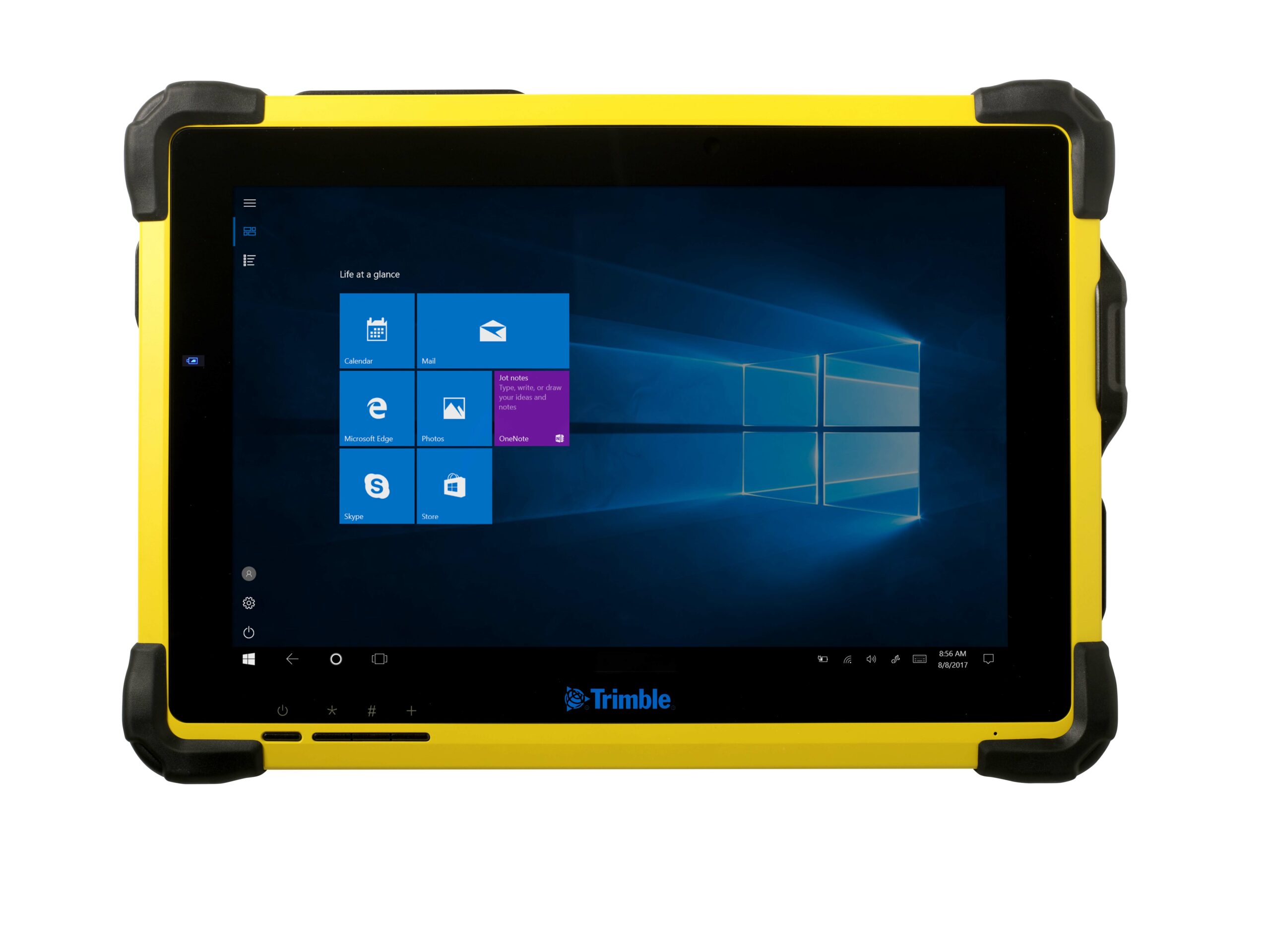

T10
This Trimble tablet features a military-grade, rugged design to hold up to demanding field use. It supports surveying, mapping and GIS workflows and can powerfully process large datasets. The large 10.1-inch screen enables clear viewing of maps, images and geospatial data in the field. The tablet also features integrated GNSS capabilities.

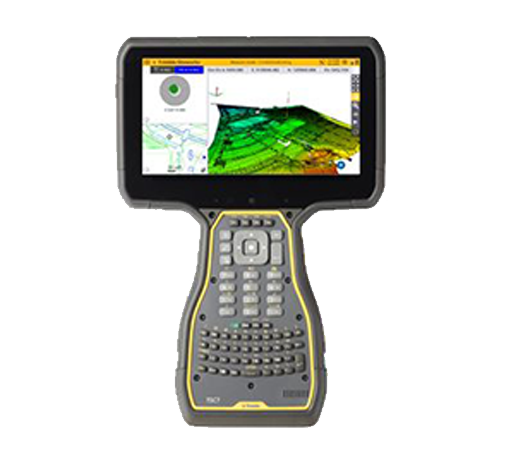

TSC7
Use this cutting-edge handheld controller for comprehensive field operations. The thoughtful design offers superior ergonomics to enhance your work. The controller uses Microsoft Windows 10 Pro and Trimble Access software that seamlessly integrates with existing tools and platforms.

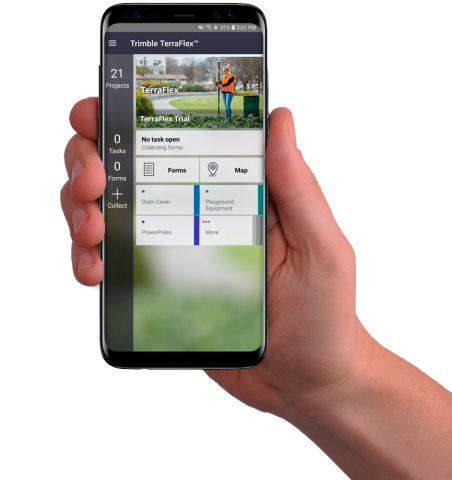

Trimble Terraflex
This advanced field software solution makes GIS data collection intuitive, so you can gather the data you need accurately. Configure simple forms to meet your requirements. This solution also streamlines communication between the field and the office, ensuring data integrity throughout.
Why Get Equipment From Monsen Engineering?
We’re a convenient local partner to operations in the Intermountain West. We have three locations, enabling you to find the one closest to you:
- Salt Lake City, Utah
- Las Vegas, Nevada
- Reno, Nevada
We’ve been a reliable partner offering industry solutions since 1974. This background means we understand your needs and can work with you to provide a suitable solution. We’re also here to support your operations throughout the long term.
We offer a comprehensive inventory of surveying equipment, including everything from software and tablets to digital levels and laser scanners. In addition to surveying equipment, we offer drones, 3D scanning, time tracking, instrument tracking solutions and more. You can even rent equipment from us to serve your short-term needs or fit your budget.
We also provide equipment support, including repair, training and technical assistance. Our team is here to serve you throughout your operations.
Contact Us About Automated Total Stations
If you want more information or a quote on the Trimble robotic total stations we offer, reach out to us online. You can also visit us in person at one of our Utah or Nevada locations.
