Trimble Stations: How do you Set Up Total, Base, & GPS Stations?

Setting up Trimble stations involves specific procedures tailored to each type. For Total Stations, secure mounting, leveling, and calibration are essential. Base Stations require a fixed, clear-sky location for satellite signals. GPS Stations need a stable, level placement for the GNSS antenna, proper power, and configuration. Following manufacturer guidelines ensures accurate setup.

Trimble SX12 Scanning Total Station

Q: What are the Key Features of the Trimble SX12?

The Trimble SX12 features high-performance scanning with integrated imaging, Trimble Lightning Technology for accurate measurements in various lighting conditions, long-range scanning up to 1,000 meters, millimeter-level accuracy, an intuitive user interface, rugged construction meeting IP55 standards, and seamless compatibility with Trimble field software for efficient data processing and management.

The Trimble SX12 provides the high-accuracy surveying capabilities of a robotic total station, with high-speed 3D scanning and imaging. This scanning total station is a two-in-one solution that streamlines field-to-finish workflows with precise measurements and comprehensive 3D data.

Request Information

Core Functions of the Trimble SX12 Scanner

The Trimble SX12 Scanning Total Station enables users to take on any survey project with efficiency, seamlessly capturing the locations of buildings, boundaries, easements and site improvements.

This simple yet intuitive instrument is designed with speed, versatility and user-friendliness in mind. Its capabilities enable seamless data flow, minimizing rework and enabling field crews to instantly verify point clouds against design models before returning to the office.

When you use the Trimble SX12, you’ll boost productivity in the field with the following functions:

Collect: The Trimble SX12 is equipped with the Trimble Access™ field software and Lighting 3DM for collecting survey data, high-speed scans and VISION™ imagery. This function speeds up data acquisition while ensuring accuracy, leading to more comprehensive datasets and fewer revisits to the site.
Process: This equipment is compatible with the software packages Trimble RealWorks® Office Software and Trimble Business Center™. This compatibility allows for cleaning up point clouds, registering multiple scans together, performing measurements and more.
Deliver: The web-based Trimble Clarity viewer can visualize and share any 3D model data using any device with an internet connection. For project stakeholders, this translates to enhanced collaboration, transparency and decision-making.
Support: The Trimble SX12 comes with a dependable two-year factory warranty to ensure uninterrupted operation. You can also invest in long-term protection plans for further support.

High-Fidelity 3D Scanning

Each point the SX12 measures or scans is precisely located in space and accurately represents a specific part of the surface, generating truly accurate and high-quality 3D data. The features for precision and resolution include:

Angular accuracy of 1 inch
An electronic distance measurement (EDM) diameter of 14 millimeters
A 100-meter laser spot

Class 1 Eye-Safe Green Laser Pointer

This instrument is equipped with a small and vibrant laser pointer with a record-breaking spot size measuring only 3 millimeters at 50 meters away. The Trimble SX12’s green laser pointer has precise aim, measurement and marking capabilities. Even with its excellent visibility, this laser pointer is completely eye-safe.

Long-Range Data Capture

The Trimble SX12 Scanning Total Station has fast and efficient long-range data capture capabilities to gather vast amounts of highly accurate data. This ability leads to significant time savings, improved project efficiency, enhanced safety and more comprehensive deliverables for surveyors.

The data capture capabilities of our total stations include:

A scan measurement rate of 26.6 kilohertz (kHz) and up to 600 meters
A DR mode total station measuring time of 1.2 seconds
A Prism mode total station measuring time of 1.6 seconds

Trimble VISION™ Camera System

The Trimble VISION™ camera system is engineered to facilitate straightforward navigation and documentation. The telescope features three integrated and calibrated cameras that provide real-world visual context for precise survey data.

Built for Demanding Applications

The Trimble total station scanner can take on even the most demanding surveying applications, including:

Underground mine surveys: The eye-safe green laser provides highly visible point marking in dark, confined spaces without risking crew safety.
Boundary and land title surveys: The integrated camera and VISION™ technology provide photographic evidence, which is crucial for reports and court cases.
Roadway and corridor surveys: The 600-meter scanning range captures dense 3D point clouds of active roadways safely from the shoulder.

Buy the Trimble SX12 From Monsen Engineering

Monsen Engineering is your one-stop shop for surveying, GIS mapping and scanning products. We’ve been serving the Intermountain West since 1974, providing advanced solutions for all project phases — from the advanced Trimble SX12 to local support and training. Request a quote today, or contact one of our surveying technology experts for more information.

The Trimble SX12 Scanning Total Station works with:

Trimble TSC7 Data Collector

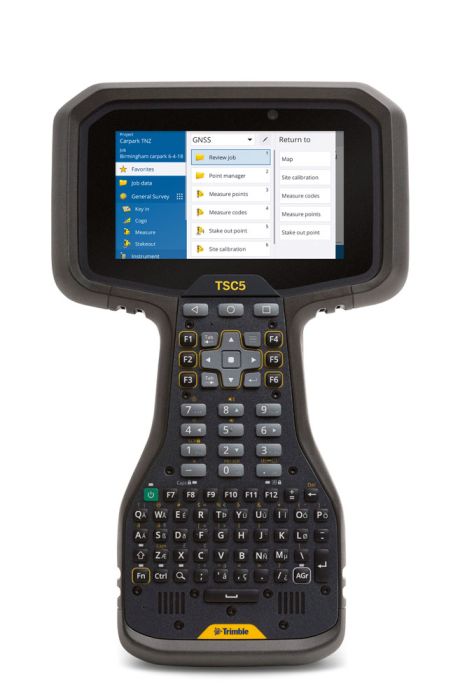

Trimble TSC5 Data Collector

If you have any questions about the Trimble SX12 or another of our other products, please feel out the form below.

Frequently Asked Questions

Where can you buy a Scanning Total Station?

You can typically buy a Scanning Total Station from authorized dealers and surveying equipment distributors. These include specialized retailers, online marketplaces, and directly from manufacturers like Trimble. It’s advisable to check with local surveying equipment suppliers or visit manufacturer websites for purchasing options, availability, and specifications that match your specific needs. Monsen Engineering can also help if you fill out the form below! We can point you in the right direction.

What are the Key Features of the Trimble SX12

The Trimble SX12 features include high-performance scanning with integrated imaging, Trimble Lightning Technology for accurate measurements in various lighting conditions, long-range scanning up to 1,000 meters, millimeter-level accuracy, an intuitive user interface, rugged construction meeting IP55 standards, and seamless compatibility with Trimble field software for efficient data processing and management.
