Spectra GL422N Grade Laser

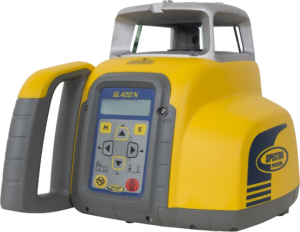

The Spectra Precision GL422N Dual Grade Laser does three jobs with one instrument: level, grade and vertical alignment. It sets itself level automatically, both horizontally and vertically, and is accurate to ±1.5 mm at 30 m (1/16″ at 100 ft) across an 800 m (2,600 ft) working diameter. Both axes cover grades from -10% to +15%, so the GL422N fits work from concrete forms and footers to sports fields, driveways, ramps and steep road embankments.

The GL422N can survive drops of up to 1 m (3 ft) onto concrete and tripod tip-overs of up to 1.5 m (5 ft). It’s fully weatherproof and dustproof (IP66) and has a strong metal sunshade, so it spends less time in the shop and costs less to repair over its life. It’s backed by a 5-year warranty.

Key features

  • Automatic horizontal and vertical self-leveling (±5° range)

  • Dual-axis grade from -10% to +15%

  • Height of Instrument (HI) Alert: the laser stops rotating if it’s bumped, so it can’t give wrong readings

  • Selectable sensitivity to stay accurate in high wind or on job sites with heavy vibration

  • RC402N radio remote control runs every laser function from up to 100 m (330 ft) away

  • Rechargeable NiMH battery lasts 35 hours (50 hours on alkaline batteries)

  • Weight: 3.1 kg (6.8 lbs)

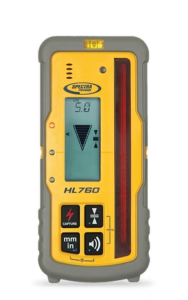

HL760 Receiver

Each GL422N system includes the HL760 receiver, which shows the beam position as a number (a digital readout). It talks to the laser by radio, which enables:

  • Grade Match: measures an unknown grade between two points so you don’t have to calculate the slope by hand
  • PlaneLok: locks onto an existing elevation or vertical alignment point, which removes drift and errors from weather or poor calibration
  • Fingerprint: the receiver only accepts the beam from the laser it’s paired with

Specs:

  • Digital readout units: mm, cm, ft, in, frac. in
  • Reception height: 127 mm (5 in)
  • Six on-grade sensitivities: Ultra Fine 0.5 mm (~1/32″), Super Fine 1 mm (~1/16″), Fine 2 mm (~1/8″), Medium 5 mm (~1/4″), Coarse 10 mm (~1/2″), Calibration Mode 0.1 mm (~1/64″)
  • Battery life: 60+ hours of continuous use (2 x AA)
  • Auto shut-off: 30 minutes / 24 hours
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Dust and waterproof: IP67
  • Weight: 0.27 kg (9.5 oz)
  • Survives drops of up to 3 m (10 ft)
  • 3-Year “No Excuses” Warranty

Need a grade laser that can take a beating? Contact Monsen Engineering to get the GL422N working on your job site.

=
