HOVERMAP ST-X
FAST. ACCURATE. VERSATILE.
![Hovermap ST-X_1](https://www.monsenengineering.com/wp-content/uploads/2022/12/Hovermap-ST-X_1.png)
IMPROVE THE AREA OF AUTOMATIC LIDAR MAPPING
The newest LiDAR sensing technology is used into Hovermap ST-X to provide high density point clouds with expanded coverage. With a sensing range of 300 meters and a rate of more than a million points per second, it collects accurate, detailed data over a larger area in less time, allowing you to gain insight more quickly.
Thanks to the award-winning Wildcat SLAM system, Automated Ground Control Points, and enhanced LiDAR sensor accuracy, Hovermap ST-X also excels at indoor or close-range scans, with results as accurate as sub-centimeters.

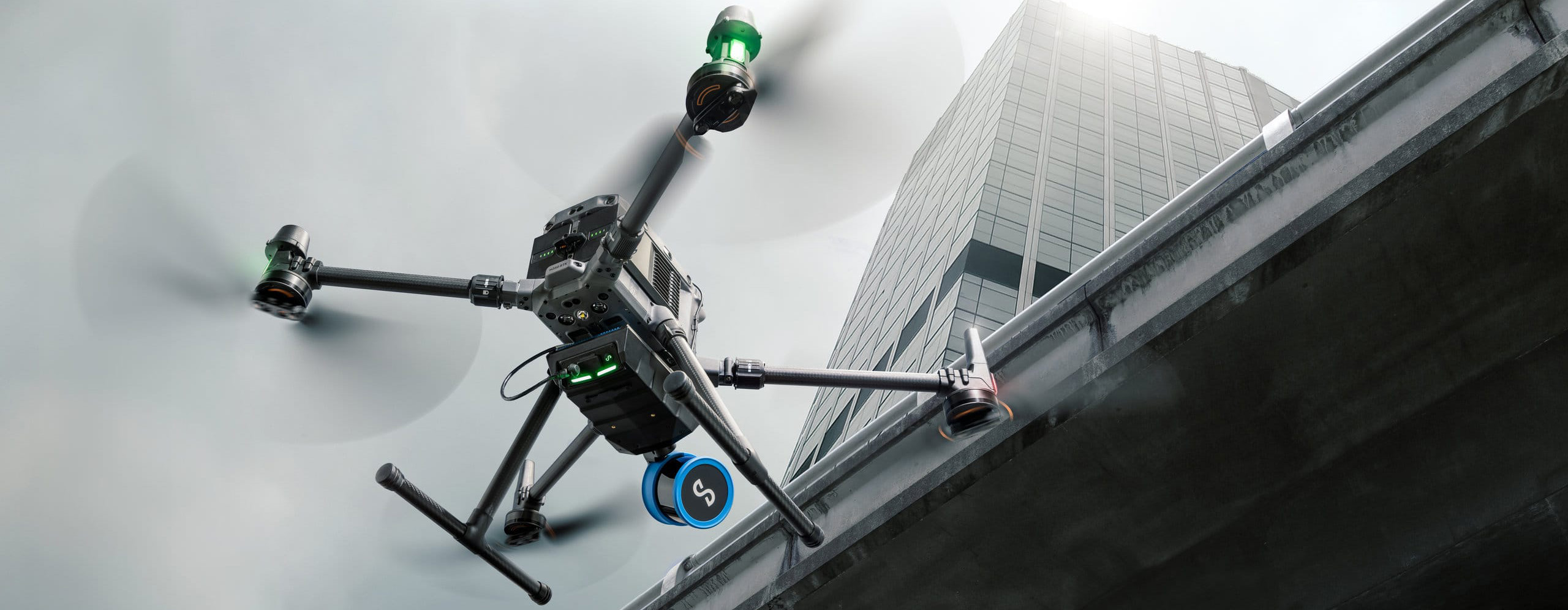

Hovermap ST-exceptional X’s adaptability enables you to collect data in any setting. Even in locations where GPS is not available, mount it to a drone for autonomous aerial mapping. Utilize it as a handheld, backpack, or vehicle-mounted scanner by simply removing it from the drone. To quickly capture as-builts and digital twins in minutes as opposed to hours, use a combination of these.
Hovermap ST-X is equally capable in the roughest situations, above ground or underground, indoors or out, thanks to its robust, lightweight, and weather-sealed construction.
![bridge_pc-600×600](https://www.monsenengineering.com/wp-content/uploads/2022/12/bridge_pc-600x600-1-150x150.png)
CAPTURE DETAILED, ACCURATE DATA
A LiDAR sensing range of 300 meters and triple returns that captures more than one million points per second allows you to capture detailed, accurate data over a great area in less time – giving you faster time to insight.
![ruler_icon-600×600](https://www.monsenengineering.com/wp-content/uploads/2022/12/ruler_icon-600x600-1-150x150.png)
SUB-CENTIMETER INDOOR SCANS
The award-winning Wildcat SLAM solution, Automated Ground Control Points (optional), and improved LiDAR sensor accuracy provides a cleaner, more precise point cloud with 4 to 5 mm accuracy allowing you to obtain more accurate measurements and improved insights.
![verse-600×600](https://www.monsenengineering.com/wp-content/uploads/2022/12/verse-600x600-1-150x150.png)
UNIQUELY VERSATILE
The plug and play design and quick-release mechanism allow easy switching between modes. Use Hovermap as a handheld scanner; attached to a drone, vehicle, or pole; lowered in a cage; or mounted to a backpack to easily collect data anywhere. The compact, lightweight design makes it easy to carry and provides longer flight time.
![robust-auto](https://www.monsenengineering.com/wp-content/uploads/2022/12/robust-auto-150x150.png)
ROBUST, AUTONOMOUS CAPABILITY
Advanced autonomy and 360 degree Collision Avoidance enables flight and mapping in challenging surroundings, including beyond visual line of sight and communication range, even in GPS-denied environments – providing new, valuable insights while the operator remains in a safe location.
OPTIONS FOR EVERY SCANNING NEED
AUTONOMY LEVELS
![AUTONOMY-LEVELS-V-2-5](https://www.monsenengineering.com/wp-content/uploads/2022/12/AUTONOMY-LEVELS-V-2-5-300x300.png)

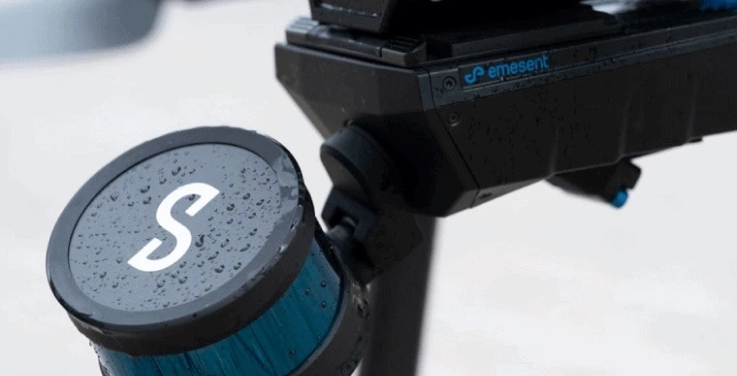

AUTONOMY LEVEL 0
MAPPING MODE
Mapping Mode offers fast, accurate, and high resolution mobile scanning of environments where drone autonomy is unnecessary. Hovermap ST-X’s quick-release mechanism allows you to easily switch from a drone to handheld scanning or a backpack-, vehicle-, or protective shaft scanning cage-mount for SLAM-based mobile mapping.
![AUTONOMY-LEVELS-V-2-6](https://www.monsenengineering.com/wp-content/uploads/2022/12/AUTONOMY-LEVELS-V-2-6-300x300.png)

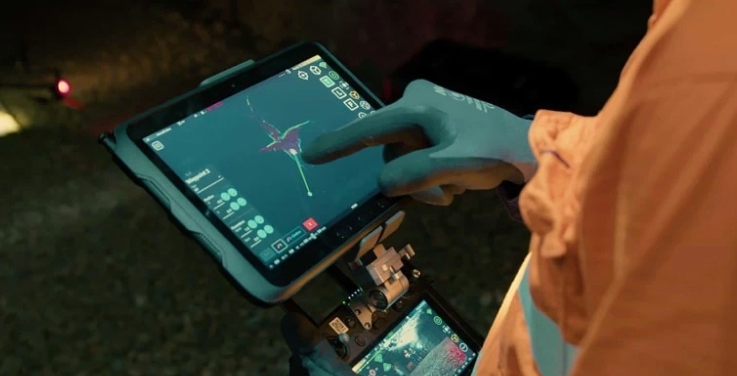

AUTONOMY LEVEL 1
PILOT ASSIST MODE
Pilot Assist Mode provides omnidirectional Collision Avoidance, line of sight GPS-denied flight capability, and stability control, providing the confidence and stability for close, thorough inspections. It acts as a safety bubble for your drone, keeping the asset and your equipment safe.
![AUTONOMY-LEVELS-V-2-7](https://www.monsenengineering.com/wp-content/uploads/2022/12/AUTONOMY-LEVELS-V-2-7-300x300.png)

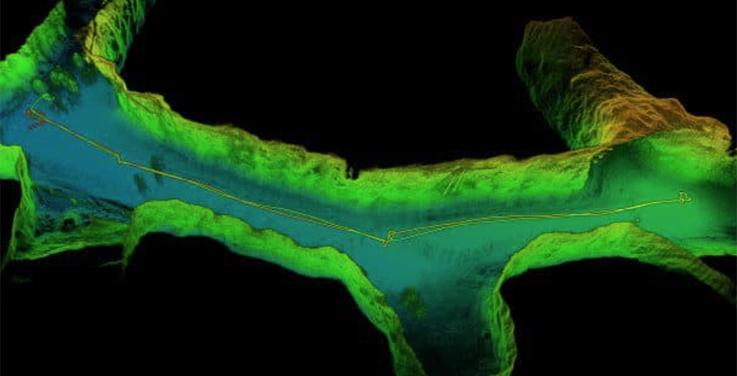

AUTONOMY LEVEL 2
AUTONOMOUS WAYPOINTS
Autonomous Waypoint Mode provides beyond line of sight flight through Smart Waypoints and Guided Exploration. Simply tap on the map to set smart waypoints, and Hovermap ST-X takes care of the rest, navigating to the waypoints, mapping the area, and keeping itself and the drone safe from obstacles.
